AWS Elastic Load Balancer

Welcome to the world of AWS Elastic Load Balancer, a powerful tool designed to optimize your cloud infrastructure and enhance the performance of your applications. In this article, we will dive deep into the functionalities and benefits of this indispensable service, providing you with all the information you need to make the most out of it.

What is AWS Elastic Load Balancer?

AWS Elastic Load Balancer is a service provided by Amazon Web Services (AWS) that allows you to distribute incoming traffic across multiple EC2 instances. It acts as a single point of contact for clients, intelligently routing requests to the most appropriate backend instances. This not only ensures high availability and fault tolerance but also helps in handling increased traffic efficiently.

The load balancer continuously monitors the health of the registered instances, automatically distributing traffic only to the ones that are healthy. If an instance becomes unhealthy or fails, the load balancer seamlessly redirects traffic to other healthy instances, minimizing downtime and providing a smooth experience for your users.

AWS Elastic Load Balancer is designed to be highly scalable, capable of handling millions of requests per second. It automatically scales up or down based on the demand, allowing you to meet fluctuations in traffic without any manual intervention. This makes it an ideal solution for applications that experience varying levels of traffic throughout the day.

How does AWS Elastic Load Balancer work?

AWS Elastic Load Balancer works by distributing incoming traffic across multiple EC2 instances in different availability zones. It uses intelligent algorithms to determine the most suitable backend instance for each request, taking into account factors such as the load on each instance, its health status, and the proximity of the client.

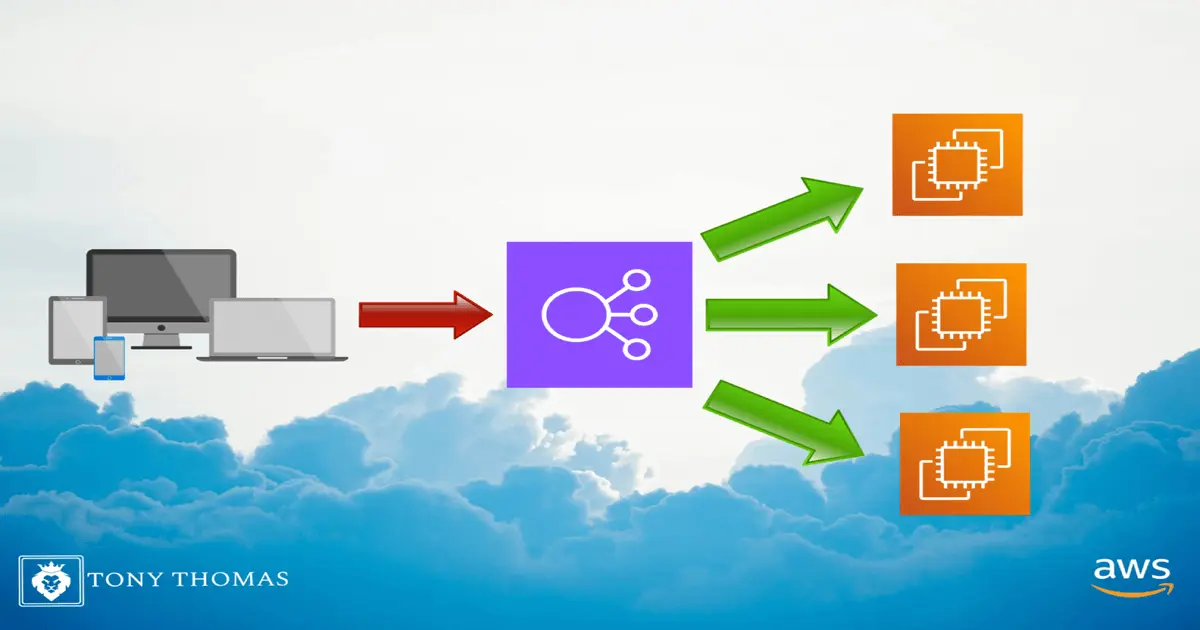

When a client makes a request to your application, it is first sent to the load balancer. The load balancer then forwards the request to one of the healthy backend instances based on the routing algorithm you have configured. The backend instance processes the request and sends the response back to the client through the load balancer.

To ensure optimal performance and fault tolerance, it is recommended to use multiple availability zones and spread your backend instances across them. This way, even if an entire availability zone becomes unavailable, your application will still be accessible through the instances in the other zones. AWS Elastic Load Balancer automatically handles the distribution of traffic across availability zones, making it easier for you to achieve high availability for your applications.

Benefits of using AWS Elastic Load Balancer

Using AWS Elastic Load Balancer brings several benefits to your cloud-based applications. Here are some of the key advantages:

1. High availability and fault tolerance: By distributing traffic across multiple backend instances, AWS Elastic Load Balancer ensures that your application remains available even if one or more instances fail. It seamlessly redirects traffic to healthy instances, minimizing downtime and providing a reliable experience for your users.
2. Scalability: AWS Elastic Load Balancer automatically scales up or down based on the demand, allowing you to handle fluctuations in traffic without any manual intervention. This makes it easy to accommodate sudden spikes in traffic and ensures that your application remains responsive even during peak times.
3. Improved performance: With AWS Elastic Load Balancer, you can eliminate bottlenecks and minimize latency by efficiently distributing traffic across multiple backend instances. This helps in improving the overall performance of your application and providing a better user experience.
4. Simplified architecture: By using AWS Elastic Load Balancer, you can simplify your application architecture by offloading the responsibility of traffic distribution and health monitoring to the load balancer. This allows you to focus on the core functionality of your application and reduces the complexity of managing multiple instances.
5. Monitoring and analytics: AWS Elastic Load Balancer provides powerful monitoring and analytics capabilities, allowing you to gain insights into the performance of your application. You can track important metrics such as request counts, response times, and error rates, and use this data to fine-tune your architecture and optimize the performance of your application.
6. Cost-effective: AWS Elastic Load Balancer offers a pay-as-you-go pricing model, which means you only pay for the resources you actually use. This makes it a cost-effective solution for load balancing, especially for applications with varying levels of traffic.

In the next sections, we will explore the different types of AWS Elastic Load Balancers, learn how to configure them, and discover best practices to achieve optimal results.

Types of AWS Elastic Load Balancer

AWS Elastic Load Balancer provides three types of load balancers: Classic Load Balancer, Application Load Balancer, and Network Load Balancer. Each type is designed to cater to different use cases and provides specific features and functionalities.

Classic Load Balancer

The Classic Load Balancer is the original load balancer provided by AWS. It operates at both the transport layer (Layer 4) and the application layer (Layer 7) of the OSI model. It supports both TCP and HTTP protocols and is capable of distributing traffic to EC2 instances based on IP addresses, TCP ports, or HTTP/HTTPS requests.

The Classic Load Balancer offers basic load balancing capabilities and is suitable for applications that require simple load balancing without advanced features. However, it lacks some of the more sophisticated routing and content-based routing features provided by the newer load balancers.

Application Load Balancer

The Application Load Balancer (ALB) is a Layer 7 load balancer that operates at the application layer. It is designed to handle HTTP and HTTPS traffic and provides advanced routing capabilities based on the content of the requests.

ALB allows you to define rules based on the URL path, host headers, or query strings, and route the requests to different target groups accordingly. This makes it ideal for applications that require more granular control over the routing of traffic, such as microservices architectures or applications with multiple endpoints.

Network Load Balancer

The Network Load Balancer (NLB) is a Layer 4 load balancer that operates at the transport layer. It is designed to handle TCP, UDP, and TLS traffic and provides ultra-low latency performance.

NLB offers high throughput and is capable of handling millions of requests per second. It is suitable for applications that require extreme performance and low latency, such as gaming applications, real-time streaming, or IoT applications.

Each type of load balancer has its own unique features and is suited for different use cases. When choosing the right load balancer for your application, consider factors such as the type of traffic, the level of control required, and the performance requirements.

Configuring AWS Elastic Load Balancer

Configuring AWS Elastic Load Balancer is a straightforward process. Here are the steps to get started:

1. Create a load balancer: In the AWS Management Console, navigate to the EC2 service and select “Load Balancers” from the sidebar. Click on “Create Load Balancer” and choose the type of load balancer you want to create (Classic Load Balancer, Application Load Balancer, or Network Load Balancer).
2. Configure the load balancer: Follow the steps provided in the wizard to configure the load balancer. This includes selecting the VPC and subnets, defining the security groups, and configuring the listeners and target groups.
3. Register instances: After configuring the load balancer, you need to register the backend instances. This can be done by selecting the instances from the EC2 instances list and associating them with the target groups defined for the load balancer.
4. Configure routing: Depending on the type of load balancer, you may need to configure routing rules to determine how the traffic should be distributed. This can include defining rules based on URL paths, host headers, query strings, or IP addresses.
5. Configure health checks: To ensure that only healthy instances receive traffic, you need to configure health checks for the backend instances. This involves specifying a target for the health checks and defining the criteria for considering an instance as healthy or unhealthy.
6. Configure logging and monitoring: AWS Elastic Load Balancer provides logging and monitoring capabilities that allow you to track important metrics and gain insights into the performance of your load balancer. Configure the desired logging and monitoring options based on your requirements.
7. Test and update: Once the load balancer is configured, it is recommended to test it thoroughly to ensure that traffic is being distributed correctly and the instances are responding as expected. Make any necessary adjustments or updates based on the results of your tests.

By following these steps, you can configure AWS Elastic Load Balancer to handle the traffic for your application efficiently and reliably.

Best practices for using AWS Elastic Load Balancer

To achieve optimal results with AWS Elastic Load Balancer, consider the following best practices:

1. Spread instances across availability zones: To ensure high availability and fault tolerance, spread your backend instances across multiple availability zones. This way, even if one zone becomes unavailable, your application remains accessible through the instances in the other zones.
2. Use health checks effectively: Configure health checks for your backend instances to ensure that only healthy instances receive traffic. Regularly monitor the health of your instances and take necessary actions to replace or repair any unhealthy instances.
3. Optimize security: Implement security best practices to protect your load balancer and backend instances. This includes configuring appropriate security groups, enabling encryption for traffic, and regularly updating the security policies.
4. Monitor and analyze performance: Utilize the monitoring and analytics capabilities provided by AWS Elastic Load Balancer to track important metrics such as request counts, response times, and error rates. Use this data to identify bottlenecks and optimize the performance of your application.
5. Regularly update load balancer configurations: As your application evolves, regularly review and update your load balancer configurations to accommodate any changes in traffic patterns or application requirements. This can include adjusting routing rules, adding or removing target groups, or modifying health check criteria.

By following these best practices, you can ensure that AWS Elastic Load Balancer is configured optimally and delivers the best performance for your applications.

Monitoring and optimizing AWS Elastic Load Balancer

Monitoring and optimizing the performance of AWS Elastic Load Balancer is essential to ensure the smooth operation of your applications. AWS provides several tools and features to help you in this process.

CloudWatch Metrics

AWS Elastic Load Balancer automatically publishes various metrics to Amazon CloudWatch, which allows you to monitor the performance of your load balancer in real-time. Some of the important metrics include request counts, active connections, response times, and error rates.

You can create custom CloudWatch dashboards to visualize these metrics and set up alarms to alert you when certain thresholds are breached. This helps in identifying issues and taking proactive actions to maintain the performance of your load balancer.

Access Logs

AWS Elastic Load Balancer can generate access logs that capture detailed information about each request processed by the load balancer. These logs can be stored in Amazon S3 and analyzed using tools such as Amazon Athena or Amazon EMR.

Access logs provide valuable insights into the traffic patterns, request sizes, and response times, allowing you to identify potential bottlenecks and optimize the performance of your application.

Auto Scaling

AWS Elastic Load Balancer can be integrated with AWS Auto Scaling, which allows you to automatically adjust the number of backend instances based on the demand. This ensures that your application can handle increased traffic without any manual intervention.

By setting up appropriate scaling policies and thresholds, you can ensure that your application always has the necessary resources to handle the traffic, while at the same time optimizing costs by scaling down when the demand decreases.

Caching

AWS Elastic Load Balancer supports content-based caching, which allows you to cache static content at the load balancer, reducing the load on your backend instances and improving response times. You can configure caching based on URL patterns or response headers, and set the TTL (Time To Live) for the cached content.

Caching can significantly improve the performance of your application, especially for static content that doesn’t change frequently. However, it is important to carefully evaluate the caching strategy to ensure that it doesn’t negatively impact the freshness of the content.

By leveraging these monitoring and optimization features, you can ensure that your AWS Elastic Load Balancer is performing optimally and delivering the best experience for your users.

Troubleshooting common issues with AWS Elastic Load Balancer

While AWS Elastic Load Balancer is a robust and reliable service, there might be situations where you encounter issues or performance degradation. Here are some common issues and their possible solutions:

1. Unhealthy instances: If your backend instances are marked as unhealthy by the load balancer, check the health check settings and make sure that the instances are responding correctly. Ensure that the security groups and network configurations allow the necessary traffic.
2. High latency: If you experience high latency or slow response times, check the performance metrics of your load balancer and backend instances. Identify any bottlenecks or performance issues and take necessary actions such as optimizing your application code or increasing the capacity of your instances.
3. Uneven distribution of traffic: If the load balancer is not evenly distributing traffic across the backend instances, check the load balancer configuration and ensure that the target groups are correctly defined. Adjust the routing rules if necessary to ensure a balanced distribution.
4. SSL/TLS termination issues: If you are terminating SSL/TLS at the load balancer and experiencing issues with SSL handshake or certificate validation, check the SSL settings and ensure that the certificates are correctly configured. Verify that the backend instances are configured to handle HTTP traffic correctly.
5. Scaling issues: If the load balancer is not scaling up or down as expected, review the scaling policies and thresholds. Ensure that the Auto Scaling group is correctly configured and the instances are launched with the appropriate AMI and configurations.

If you are still experiencing issues or need further assistance, AWS provides comprehensive documentation, support resources, and forums to help you troubleshoot and resolve any issues with AWS Elastic Load Balancer.

AWS Elastic Load Balancer vs other load balancing solutions

While AWS Elastic Load Balancer is a powerful and feature-rich load balancing solution, there are also other load balancing solutions available in the market. Here’s a comparison of AWS Elastic Load Balancer with some popular load balancing solutions:

1. NGINX Load Balancer: NGINX is a popular open-source load balancer that provides advanced load balancing capabilities. It is highly customizable and can be deployed on-premises or in the cloud. NGINX is known for its high performance and low resource consumption, making it suitable for high-volume applications.
2. HAProxy: HAProxy is another open-source load balancer that is widely used for its reliability and performance. It is known for its ability to handle high traffic loads and provides advanced load balancing algorithms. HAProxy is often used in combination with
